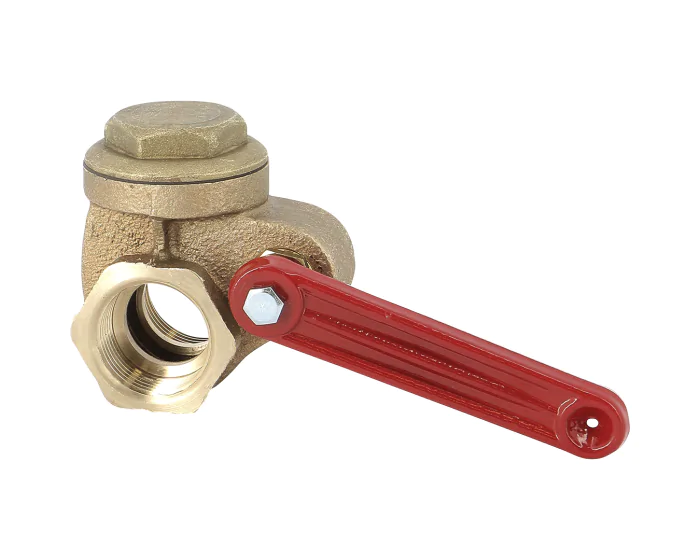

Bronze gate valve 140 quick closing with bronze body, brass gate, and metal-to-metal sealing. Full bore, PN16, female BSP connections for water networks. Operates from -10°C to 110°C, ensuring reliable shut-off and flow control.
| Specification | Value |
|---|---|
| DN inches NPS | 3/8'' |
| Bonnet material | Brass CW617N |
| Brand | AIRAGA |
| Thread standard | ISO 228-1 |
| Bonnet | Screwed |
| Opening device | Lever |
| Application | Water supply and distribution network |
| Shaft/stem matérial | Brass CW614N |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 44.0 |
| Sealing | Metal / Metal |
| Fluid | Hot water / Cold water / Drinking water |
| Kv (m³/h) | 10.0 |
| Body material | Bronze |
| Gate material | Brass CW617N |
| Bore | Full |
| PS (bar) | 16 |
| Connections | BSP FF |
| Seats | Bronze |
| TS max (°C) | 110 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Bronze Full 3/8'' | 140003 | S1010407 |
€26.46
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1/2'' | 140004 | S1010408 |
€26.46
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 3/4'' | 140005 | S1010409 |
€35.54
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1'' | 140006 | S1010410 |
€46.09
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1''1/4 | 140007 | S1010411 |
€56.90
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1''1/2 | 140008 | S1010412 |
€74.13
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 2'' | 140009 | S1010413 |
€105.84
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 2''1/2 | 140010 | S1010414 |
€171.96
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 3'' | 140011 | S1010415 |
€222.30
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 4'' | 140012 | S1010416 |
€375.96
(excl. btw)
|
add to cart |
